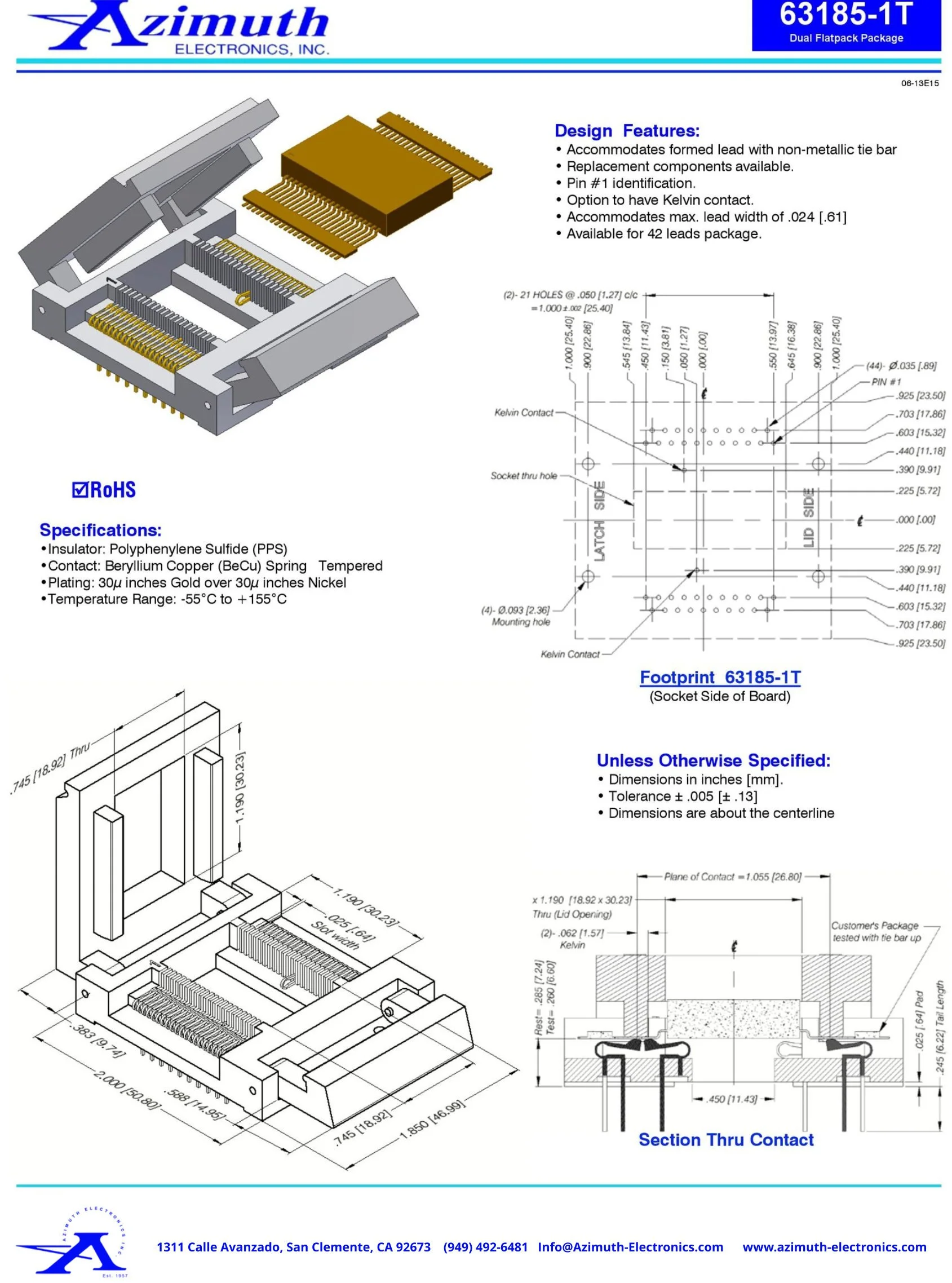

Sockets for Dual Flatpack Package 63185-1T
Azimuth Electronics makes Sockets for Dual Flatpack Package 63185-1T for your package. Socket Manufacturer Delivering the Highest Quality Quad Flat Packages, Worldwide. From Design to Prototype to Production, We Welcome the Challenges and Opportunities We Face From Ongoing Technological Advancements.
Specifications:
•Insulator: Polyphenylene Sulfide (PPS)
•Contact: Beryllium Copper (BeCu) Spring Tempered
•Plating: 30μ inches Gold over 30μ inches Nickel
•Temperature Range: -55°C to +155°C
Design Features:
Accommodates formed lead with non-metallic tie bar
Replacement components available.
Pin #1 identification.
• Option to have Kelvin contact.
Accommodates max. lead width of .024 [.61]
Available for 42 leads package.
We can make custom sockets for your package. Azimuth Electronics makes Single & Inline Sockets for Dual Flatpack Packages, Burn in and Flat Test Packages.
Solving problems with our Single In-line Package (SIP) Socket, Flat Package, Leadless Chip Carrier Socket, Low Insertion Force Socket, Power Flat Pack Socket, Burn-in Test sockets with our latest solutions.
Azimuth Electronics strives to provide the best Single In-line Package (SIP) Socket, Flat Package Socket, Quad Flat Package (QFP) Socket, Plug-In Transistor Outline (TO-39) Socket, Flat Pack Socket for your Package, Lead Socket, Burn-in & Test socket manufacturing and development.
We can make custom sockets for your package and offer Socket Manufacturer. Always Delivering the Highest Quality Quad Flat Packages, Worldwide. From Design to Prototype to Production, We Welcome the Challenges and Opportunities We Face From Ongoing Technological Advancements.
For further information on any of the products listed below, click the thumbnail to be directed to the catalog page.
If you have any questions speak with a member of our team by contacting us here.
Looking for a custom-made product for your Package?
