Sockets for your Grid Array Package
Azimuth Electronics make Sockets for your ZIF Grid Array Package. We can create Custom Sockets for your next project. Socket Manufacturer Delivering the Highest Quality Quad Flat Packages, Worldwide. From Design to Prototype to Production, We Welcome the Challenges and Opportunities We Face From Ongoing Technological Advancements.
Each of the following products is available for any number of leads, lead widths, and lead spacing. Some socket options include low profile, high current contacts and interchangeable inserts.
For further information on any of the products listed below, click the thumbnail to be directed to the catalog page.
If you have any questions speak with a member of our team by contacting us here.
Looking for a custom-made product? Request a Quote
ZIF Socket Animation
Grid Array - Zero Insertion Force (ZIF)
| Pin Count | Pitch [mm] | Package Size | Azimuth Part Number |
|---|---|---|---|
| 39 | 0.100 [2.54] | ~ | 5398ZIF - 39 |
| 68 | 0.050 [1.27] | ~ | 5398ZIF - 68 |
| 92 | 0.050 [1.27] | ~ | 5398ZIF - 92 |
| 112 | 0.050 [1.27] | ~ | 5398ZIF - 112 |
| 132 | 0.050 [1.27] | ~ | 5398ZIF - 132 |
| 136 | 0.0354 [.90] / var | 1.240 [31.50] x 1.390 [35.30] | 63164 - 136T |

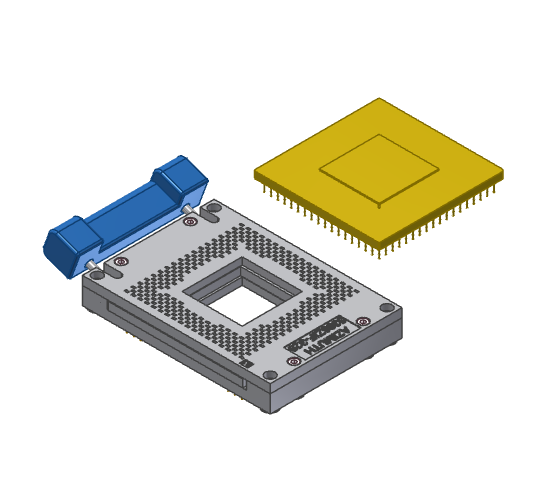

| 325 | 0.100 [2.54] | 1.858 [47.20] sq | 5398ZIF - 325 |
| 660 | 0.050 [1.27] | 2.200 [55.88] x 2.300 [58.42] | 6365 |
| 684 | 0.050 [1.27] | 2.200 [55.88] x 2.300 [58.42] | 6365 - 1 |
