Socket Plug-in for your Package
Azimuth Electronics makes Socket Plug-in for your Package. We can make custom sockets for your package. Socket Manufacturer Delivering the Highest Quality Quad Flat Packages, Worldwide. From Design to Prototype to Production, We Welcome the Challenges and Opportunities We Face From Ongoing Technological Advancements.
Each of the following products is available for any number of leads, lead widths, and lead spacing. Some socket options include low profile, high current contacts and interchangeable inserts.
For further information on any of the products listed below, click the thumbnail to be directed to the catalog page.
If you have any questions speak with a member of our team by contacting us here.
Looking for a custom-made product? Request a Quote
Plug-In Socket Animation
Plug-In Socket Animation
Plug-In
| Lead Count | Pitch [mm] | Number of Sides | Leads Per Side | Package Size | Azimuth Part Number |
|---|---|---|---|---|---|
| 3 | 0.050 [1.27] | 1 | 3 | ~ | 63182T / 63183T |
| 3 | 0.050 [1.27] | 1 | 3 | 0.164 [4.16] x 0.122 [3.10] x 0.062 [1.57] thick | 63071 - 2 |

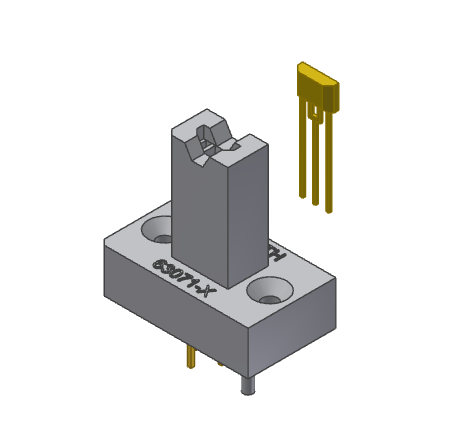

| 3 | 0.075 [1.91] | 1 | 3 | 0.208 [5.28] x 0.138 [3.51] x 0.063 [1.60] thick | 63071 - 1 |

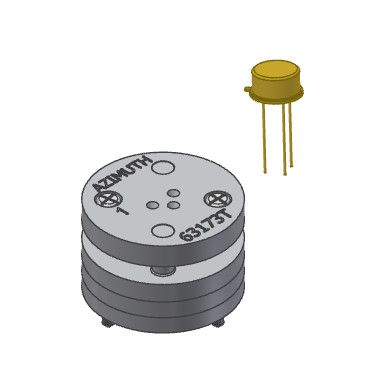

| 3 | 0.100 [2.54] | 1 | 3 | ~ | 63173T |
| 4 | 0.050 [1.27] | 1 | 4 | ~ | 63067 |
| 4 | 0.050 [1.27] | 1 | 4 | ~ | 63181T |
| 4 | 0.050 [1.27] | 1 | 4 | 0.208 [5.28] x 0.138 [3.51] x 0.063 [1.60] thick | 63071 - 3 |
| 5 | 0.050 [1.27] | 1 | 5 | 0.252 [6.40] x 0.181 [4.60] x 0.063 [1.60] thick | 63071 - 4 |
| 8 | 0.200 [5.08] | 4 | 2 | 0.938 [23.83] diameter | 5555LIF - 1 |
| 16 | 0.100 [2.54] | 4 | 4 | 0.938 [23.83] diameter | 5555LIF - 2 |
| 39 | 0.100 [2.54] | 2 | 26 / 13 | ~ | 5398ZIF - 39 |
| 68 | 0.050 [1.27] | 4 | 25 / 9 | ~ | 5398ZIF - 68 |
| 92 | 0.050 [1.27] | 4 | 25 / 21 | ~ | 5398ZIF - 92 |
| 112 | 0.050 [1.27] | 4 | 35 / 21 | ~ | 5398ZIF - 112 |
| 132 | 0.050 [1.27] | 4 | 45 / 21 | ~ | 5398ZIF - 132 |
| 325 | 0.100 [2.54] | 4 | Variable | 1.858 [47.20] | 5398ZIF - 325 |
